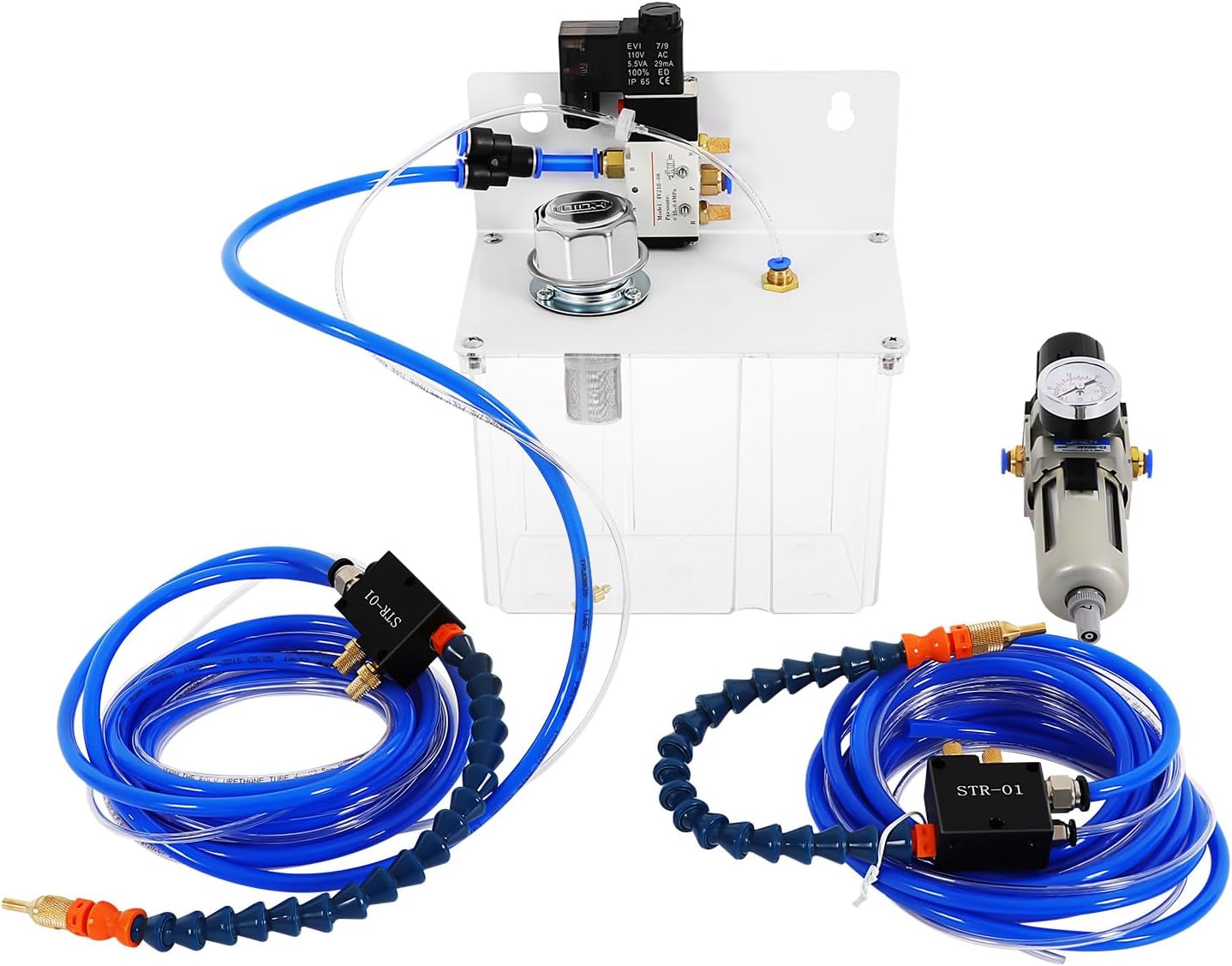

Self-priming Micro-mist Machine, Misting Spray System for Cutting Machine Coolant Cooling Spray Pump Kit with Solenoid Valve and Filter Sprayer Coolant Lubrication Spray System with Pump

• 【Build to Last: 】This coolant lubrication spray system is made of resin, A3 iron, aluminum alloy, iron, engineering plastics, PU, and PVC, so it is resistant to deformation, oxidation, and high temperatures, and has a long service life.
• 【Thoughtful Design:】 This coolant cooling spray pump kit can directly seal the air inside the pipeline, and when bent freely, it will not leak at the contact surface, ensuring that the machine will not restart frequently due to high consumption, saving energy, and extending its service life.
• 【Economical and Practical:】 This self-priming micro-mist machine can be installed on CNC lathes and milling machines(not included) to improve machining capacity and cutting speed, save time, and reduce machining costs and tool wear.
• 【User Friendly: 】Its air volume and spray volume are adjustable, which is convenient for you to use in different environments. It can be used to blow away lightweight fragments, creating a cleaner and safer working environment for you.
• 【Convenient to Carry: 】Thanks to its lightweight(6.28 lbs) and compact structure, you can take it out or store it in the car trunk without taking up too much space.

How to Use:

1. The gas pipe of the air pump intakes air from the air inlet marked in the air filter. Air is released from the OUT outlet and then connected to the solenoid valve with two copper mufflers at the end of the intake.

2. The complimentary blue gas pipe should be plugged into the AIR inlet connected to the sprayer from the end of the solenoid valve with a plug. One end of the complimentary transparent tubing is connected to the check valve on the tank and the other end is inserted directly into the OIL suction port of the sprayer.

3. Machine tool PLC access to the solenoid valve coil, using a PLC program to control the opening and closing of the solenoid valve. The solenoid valve open, on the ventilation spray; The solenoid valve is closed, and the gas is not sprayed.

Specifications

Material: Resin, A3 Iron, Aluminum Alloy, Iron, Engineering Plastics, PU, and PVC

Color: Clear and Blue

Assembly Required: Yes

Voltage: AC 110V

Protection Level: IP65

Pressure: 0.15-0.8MPa

Air Filter Pressure: 0.05-0.8 MPa

Air Filter Length: 19.5cm/7.68in

Oil Tank Size: 7.68*9.49*4.92in

Solenoid Valve Length: 11.8cm/ 4.65 in

Package Size: 12.2*7.87*10.24in

Gross Weight: 3kg/6.6 lbs

Net Weight: 2.85kg/6.28lbs

Package Included

1* Solenoid Valve

1* Oil Tank

1* Air Filter

2* Pneumatic Cooling Spray Tubes

Notes

1. Please note that customers need to prepare their own air compressor (air pressure 4.4-16.54lbs) connection for use.

2. Please note that it can spray with just 2.2 lbs of air pressure without the need for water pressure. When the viscosity of the liquid is relatively high, a pressure greater than 2.2 lbs may be required.
