About this item

• No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan
• AISI 4140 DIES - AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated (HRC43°~45°) and have a zinc phosphate surface treatment
• A Die - For insulated terminals. Red 0.5 - 1mm² (22-18 AWG) Blue 1.5-2.5mm² (16-14 AWG) Yellow 4 -6mm² (12-10 AWG) B Die - Indent crimping for 50A Anderson Connectors and non-insulated terminals 1.5/2.5/6.0/10 mm² (AWG 20-18 /16-14/12-10/ 8) C Die - For open barrel terminals 0.5 - 1mm² (22-18 AWG) 1.5-2.5mm² (16-14 AWG) 4 -6mm² (12-10 AWG) A1 Die - For heat shrink insulated terminals. Red 0.5 - 1mm² (22-18 AWG) Blue 1.5-2.5mm² (16-14 AWG) Yellow 4 -6mm² (12-10 AWG) Red 10mm² (8 AWG)
• D Die - For bootlace ferrule (cord end terminals) sizes 0.5 mm², 0.75 mm², 1 mm², 1.5 mm², 2.5 mm² and 4 mm², (22, 20, 18, 16, 14, 12 AWG) F Die - For bootlace ferrules (cord end terminals) 6 mm², 10 mm² and 16mm² (10, 8, 6 AWG) F1 Die - For bootlace ferrules (cord end terminals) 25mm² and 35mm² (4-2 AWG) A4 Die - For insulated flag terminals. Red 0.5 - 1mm² (22-18 AWG) Blue 1.5-2.5mm² (16-14 AWG)
• E Die - RG58 RG59 coax cable connectors. Crimp sizes 0.255″ (6.48mm), 0.213″ (5.41mm), 0.100″ (2.54mm), 0.68″ (1.72mm), 0.324″ (8.23mm) E6 Die - RG6 coax cable connectors. Crimp sizes – 0.100″ (2.54mm), 0.213″ (5.41mm), 0.319″ (8.1mm), 0.360″ (9.14mm) E4 Die - RG8 RG11 coax cable connectors. Crimp sizes 0.1″ (2.54mm), 0.128″ (3.25mm), 0.429″ (10.9mm) I2 Die - For MC4 solar connectors. Crimp sizes 2.5mm² (14 AWG) 4mm² (12 AWG) 6mm² (10 AWG)

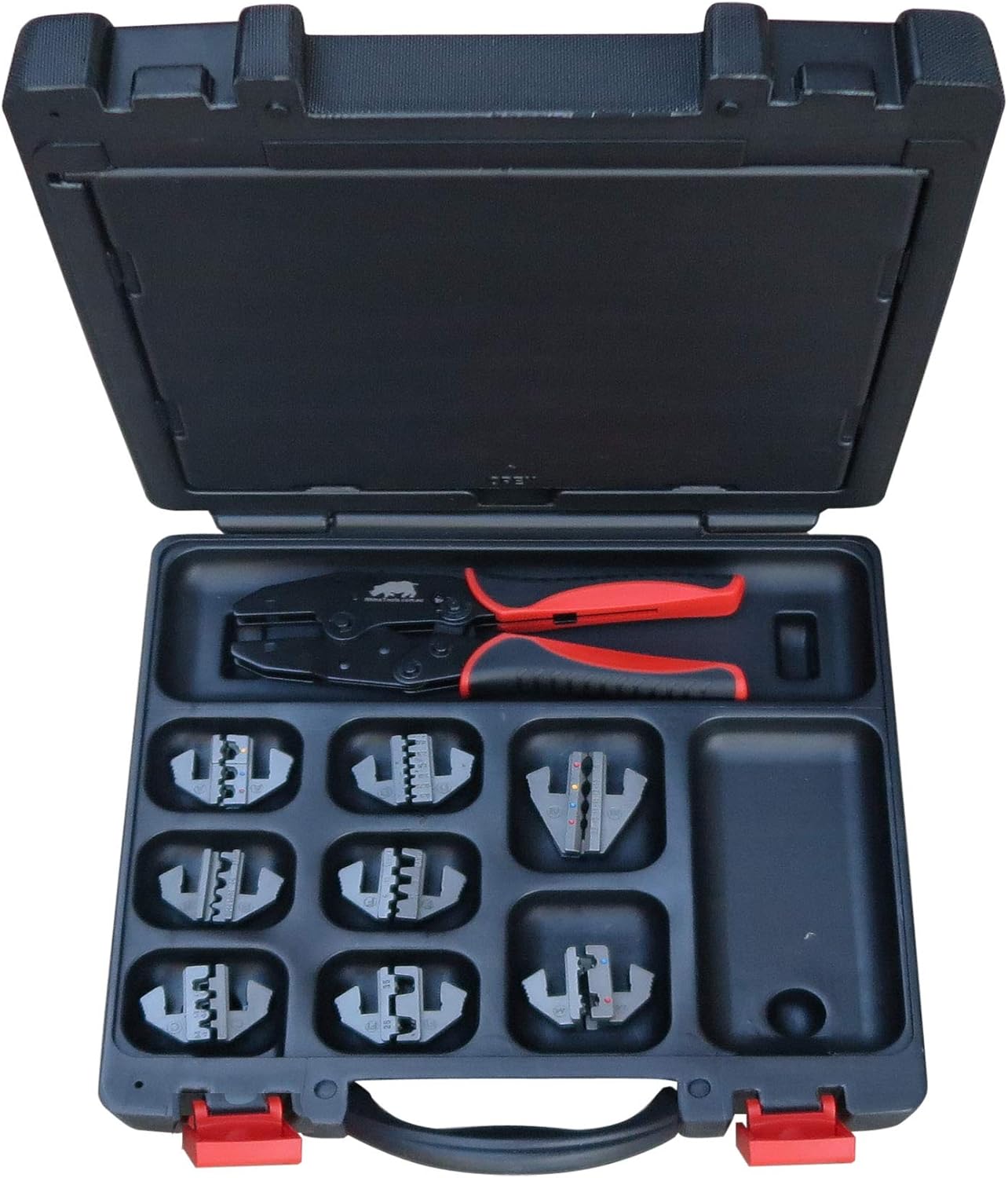

12 Die Electricians Quick Change Crimping Kit

A Die - For insulated cable terminals. Red 0.5 -1mm² (22-18 AWG) Blue 1.5-2.5mm² (16-14 AWG) Yellow 4 -6mm² (12-10 AWG)

B Die - Indent crimping for 50A Anderson Connectors and non-insulated terminals1.5/2.5/6.0/10mm² (AWG 20-18 /16-14/12-10/ 8)

C Die - For open barrel terminals 0.5 - 1mm² (22-18 AWG) 1.5-2.5mm² (16-14 AWG) 4 -6mm²(12-10 AWG)

A1 Die - For heat shrink insulated terminals. Red 0.5- 1mm² (22-18 AWG) Blue 1.5-2.5mm² (16-14 AWG) Yellow 4 -6mm² (12-10 AWG) Red 10mm²(8 AWG)

D Die - For bootlace ferrule (cord end terminals) sizes 0.5 mm², 0.75 mm², 1 mm², 1.5 mm², 2.5 mm² and 4 mm², (22, 20, 18, 16, 14, 12 AWG)

F Die - For bootlace ferrules (cord end terminals) 6mm², 10 mm² and 16mm² (10, 8, 6 AWG)

F1 Die - For bootlace ferrules (cord end terminals) 25mm² and 35mm² (4-2 AWG)

A4 Die - For insulated flag terminals. Red 0.5 - 1mm²(22-18 AWG) Blue 1.5-2.5mm² (16-14 AWG)

E Die - RG58 RG59 coax cable connectors. Crimp sizes 0.255″(6.48mm), 0.213″ (5.41mm), 0.100″ (2.54mm), 0.68″ (1.72mm), 0.324″ (8.23mm)

E6 Die - RG6 coax cable connectors. Crimp sizes –0.100″ (2.54mm), 0.213″ (5.41mm), 0.319″ (8.1mm), 0.360″ (9.14mm)

E4 Die - RG8 RG11 coax cable connectors. Crimp sizes 0.1″(2.54mm), 0.128″ (3.25mm), 0.429″ (10.9mm)

I2 Die - For MC4 solar connectors. Crimp sizes 2.5mm² (14 AWG) 4mm² (12 AWG) 6mm² (10 AWG)
